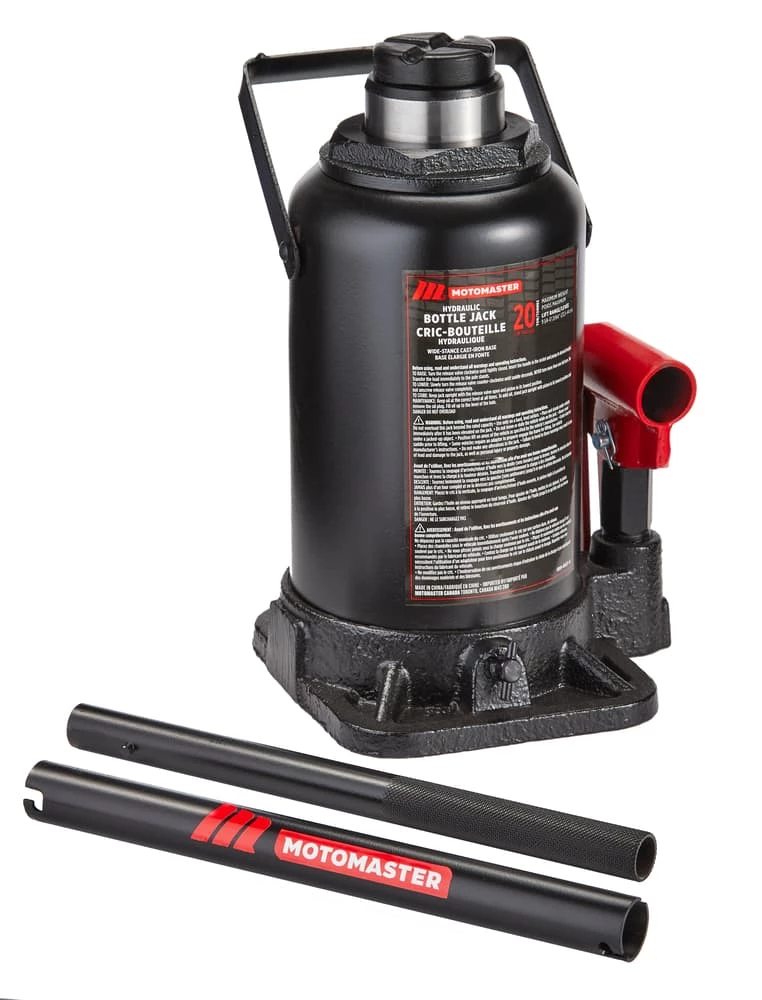

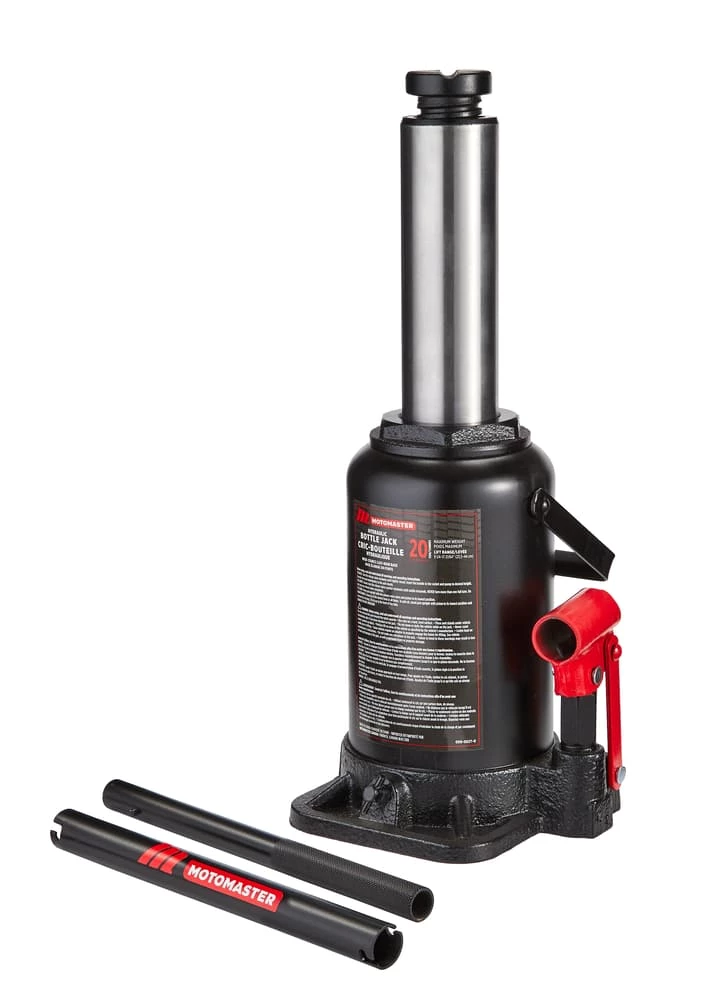

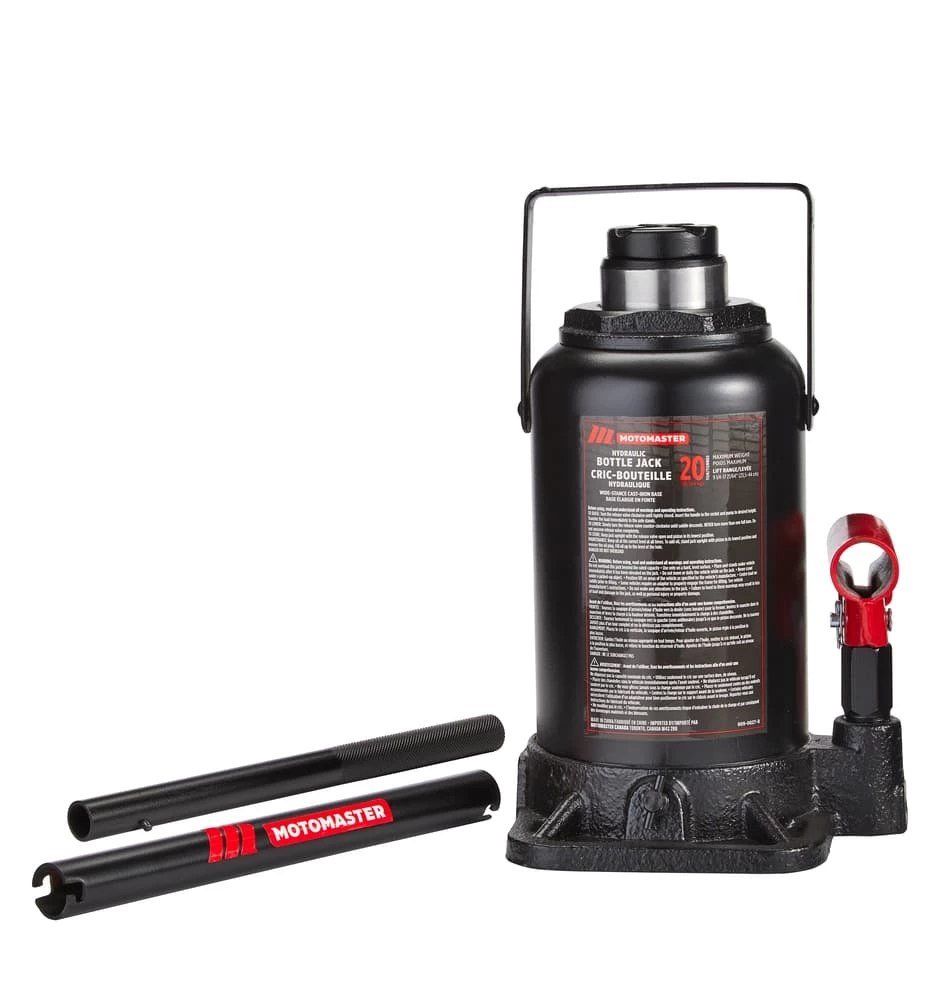

MotoMaster 20-Ton Hydraulic Bottle Jack

Features

• MotoMaster 20-Ton Hydraulic Bottle Jack offers strength and durability for a variety of automotive, construction, industrial and farming needs
• Suitable for passenger cars, SUV/vans, light trucks and trucks
• Extension screw allows for easy height adjustment
• Integrated bypass and overload valves protect the hydraulic system from damage through over-pumping and provides added saftey
• Wide-stance, ductile cast-iron base and steel grooved saddle provides greater stability and grip when lifting a load
• Precision-crafted, polished cylinder and piston allows for longer trouble-free service
• Screw Extension: 2-3/8″ (6 cm)
• Hydraulic Lift: 5-45/64″ (14.5 cm)
• Lift Range: 9-1/4 – 17-21/64″ (23.5 – 44 cm)
• Maximum Weight Capacity: 20-Tons (40,000-lbs)
• Available in a range of sizes (each sold separately): 2-Ton (009-1002), 4-Ton (009-1004), 8-Ton (009-1019) and 12-Ton (009-1013)

Specifications

• Accessories List: Handle
• Advanced Features: Adjustable Height, Includes Crank/Handle
• Assembled Height (cm): 24.00 cm
• Assembled Height (ft): 0.79 ft
• Assembled Height (in): 9.45 in
• Assembled Length (cm): 15.00 cm
• Assembled Length (ft): 0.49 ft
• Assembled Length (in): 5.91 in
• Assembled Weight (kg): 9.80 kg
• Assembled Weight (lb): 21.61 lb
• Assembled Width (cm): 16.00 cm
• Assembled Width (in): 6.30 in
• Assembled Width (mm): 160.00 mm
• Certifications: ANSI Certified
• Duty Rating: Standard Duty
• Finish: Painted
• Handle Length (cm): 44.50 cm
• Handle Length (in): 17.52 in
• Handle Type: Standard
• Maximum Lift Height (cm): 44.00 cm
• Maximum Lift Height (in): 17.32 in
• Maximum Weight Capacity (g): 18144000.00 g
• Maximum Weight Capacity (kg): 18144.00 kg
• Maximum Weight Capacity (lb): 40000.63 lb
• Minimum Lift Height (cm): 23.50 cm
• Minimum Lift Height (in): 9.25 in
• Number of Pieces: 1
• Package Depth (cm): 17.50 cm
• Package Depth (in): 6.89 in
• Package Height (cm): 25.00 cm
• Package Height (in): 9.84 in
• Package Weight (kg): 9.70 kg
• Package Weight (lb): 21.38 lb
• Package Width (cm): 16.00 cm
• Package Width (in): 6.30 in
• Primary Colour: Black
• Primary Material: Steel
• Product Use(s): Automotive
• Pump/Lift Type: Hydraulic
• Type of Lift/Stand: Bottle Jack
• Vehicle Type: Car, SUV, Truck
